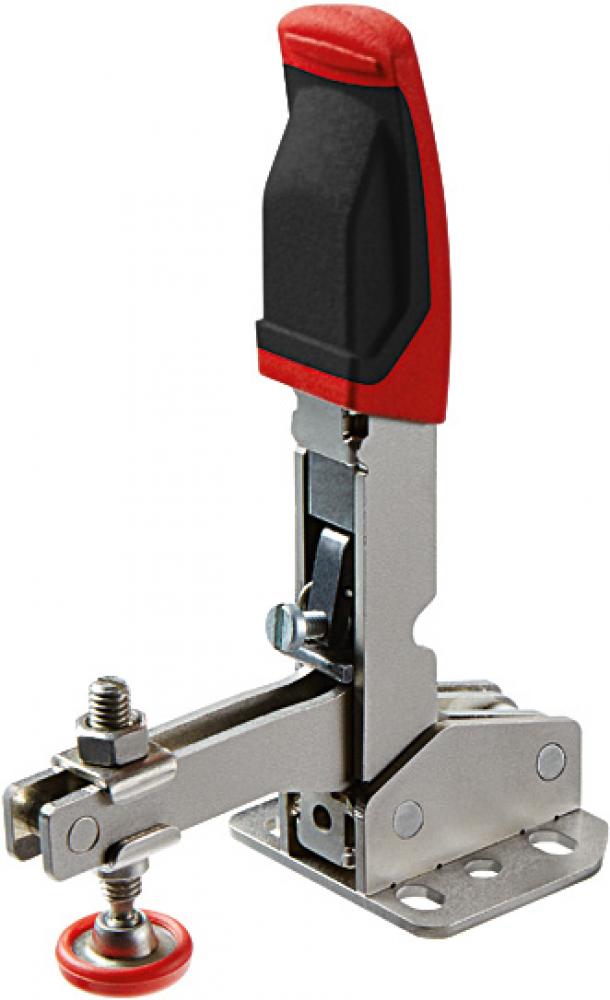

Vertical Toggle With Open Arm And Horizontal Base Plate (STC-VH50)
by Bessey Tools
Auto-Adjusts to variations in work piece height from 0-50 mm (approx 1 9/16 IN) Holding capacity up to 700 lbs (nominal) Integrated pressure screw allows clamping force adjustment from 25-550 lbs Large ergonomic handle Base construction is optimized for 1/4 IN (M6) fasteners
Product Specification
Item #
STC-VH50
Dimensions
Height: 6.38"
Width: 2.38"
Additional product details
Vendor Item #
STC-VH50
Industrial Category
Hand Tools
Industrial Subcategory
Clamps
Industrial Subtype
Vertical Handle Toggle Clamps
Approx. Weight
0.94 lbs
Automatic Adjust
1 3/8"
Case Quantity
6
Clamping Capacity
1 9/16"
Country Of Origin
Germany
Fastener
1/4" or M6
Holding Capacity
700 lbs
Includes
Large Ergonomic Handle, Adjustment Screw, Adaptable Base Plate
Item Ship Weight
0.94
Item Weight
0.94
Nominal Clamping Force Range
25 - 550 lbs*
Order Minimum
1
Ship Carton Height
6.38
Ship Carton Length
4.57
Ship Carton Width
2.36
Spec 7
450
Type
Vertical
UNSPSC
27112132
Manufactured By
Bessey Tools
Other Details:
- A removable non-marring plastic cap is included on the steel pressure pads.
- Adjustable Clamping Force - the integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 250 lbs. (max holding capacity 450 lbs.)
- No more time-consuming manual adjustment of the spindle height to maintain safe and correct clamping force
- One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps
- The BESSEY Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force
- Vertical toggle with open arm and horizontal base plate
