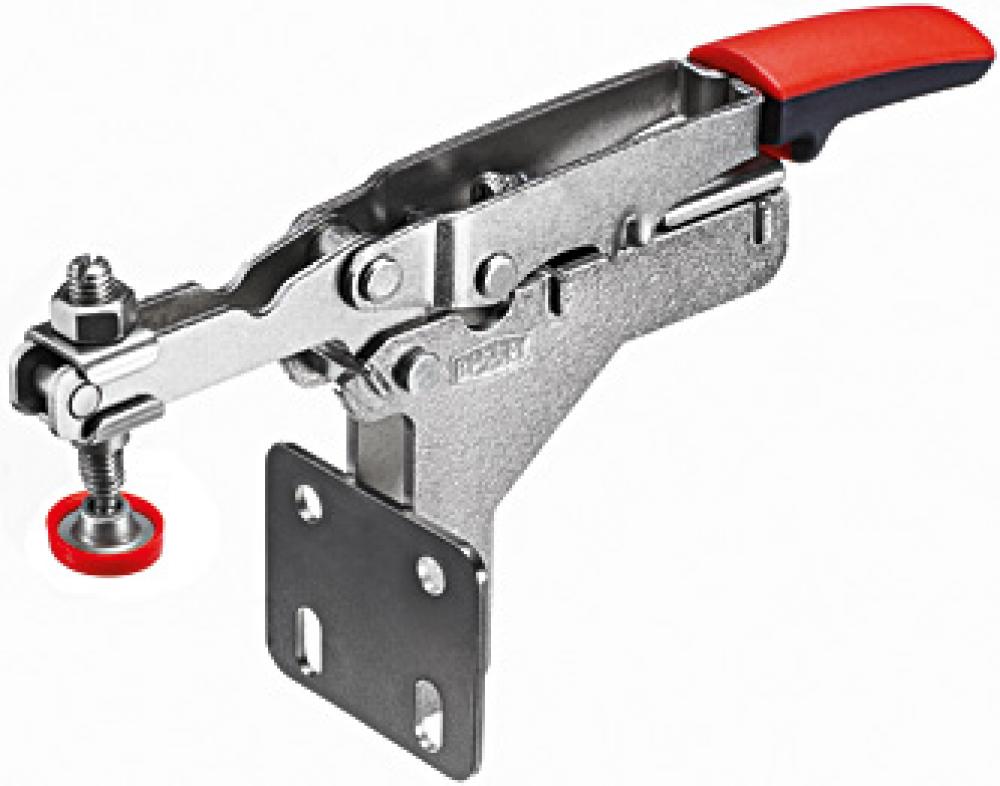

Horizontal Toggle With Angled Base Plate
Image may not reflect selected features
/vendors/4835/large/STC-HA20_sloping__28.jpg.aspx.jpeg
additional image
additional image
Horizontal Toggle With Angled Base Plate (STC-HA20) by Bessey Tools
Auto-Adjusts to variations in work piece height from 0-20 mm (approx 13/16 IN) Holding capacity up to 450 lbs (nominal) Integrated pressure screw allows clamping force adjustment from 25-250 lbs Large ergonomic handle
Downloads
Product Specification
Item #
STC-HA20
Dimensions
Height: 3.38"
Width: 1.77"
Additional product details
Vendor Item #
STC-HA20
Industrial Category
Hand Tools
Industrial Subcategory
Clamps
Industrial Subtype
Horizontal Handle Toggle Clamps
Approx. Weight
0.48 lbs
Automatic Adjust
3/4"
Case Quantity
6
Clamping Capacity
13/16"
Country Of Origin
Germany
Fastener
3/16" or M5
Holding Capacity
450 lbs
Includes
Large Ergonomic Handle, Adjustment Screw, Adaptable Base Plate
Item Ship Weight
0.48
Item Weight
0.48
Item Weight (kgs)
0.218
Nominal Clamping Force Range
25 - 250 lbs*
Order Minimum
1
Ship Carton Height
3.42
Ship Carton Length
6.625
Ship Carton Width
1.783
Spec 7
450
Type
Horizontal
UNSPSC
27112132
Manufactured By
Bessey Tools


Other Details:
  • A removable non-marring plastic cap is included on the steel pressure pads.
  • Adjustable Clamping Force - the integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 250 lbs. (max holding capacity 450 lbs.)
  • Horizontal toggle with open arm and angled base plate
  • No more time-consuming manual adjustment of the spindle height to maintain safe and correct clamping force
  • One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps
  • The BESSEY Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force
Clamping Capacity
13/16"
3/8"
Additional options that would change other selections
1 9/16"
2 3/8"
5/8"
N/A
Automatic Adjust
3/4"
Additional options that would change other selections
1 3/8"
1/2"
5/16"
N/A
Type
Horizontal
Additional options that would change other selections
Inline
N/A
Vertical
