Inline Toggle With Flanged Base Plate
Image may not reflect selected features
/vendors/4835/large/STC-IHH25_sloping__28.jpg.aspx.jpeg
additional image
additional image

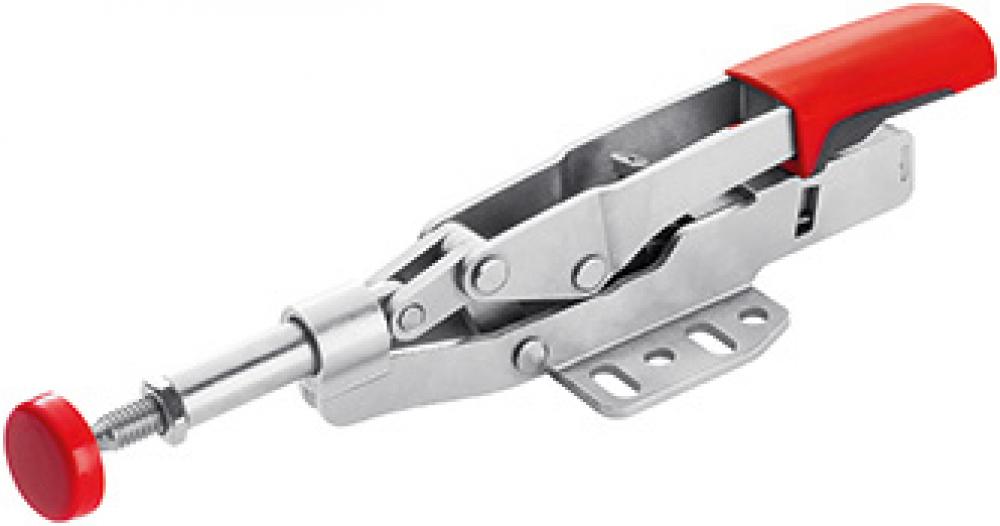

Inline Toggle With Flanged Base Plate (STC-IHH15) by Bessey Tools
Auto-Adjusts to variations in work piece width up to 0-16 mm (approx 5/8 IN) Holding capacity up to 700 lbs (nominal) Integrated pressure screw allows clamping force adjustment from 25-550 lbs Large ergonomic handle High quality construction Base construction is optimized for 1/4 IN (M6) fasteners Plunger has an M8 thread
Downloads
Product Specification
Item #
STC-IHH15
Dimensions
Height: 1.26"
Width: 1.65"
Additional product details
Vendor Item #
STC-IHH15
Industrial Category
Hand Tools
Industrial Subcategory
Clamps
Industrial Subtype
Vertical Handle Toggle Clamps
Additional Info
STC-IHH15 Spindle service part set
Approx. Weight
0.41 lbs
Automatic Adjust
5/16"
Case Quantity
5
Clamping Capacity
3/8"
Country Of Origin
Germany
Fastener
3/16" or M5
Holding Capacity
450 lbs
Includes
Large Ergonomic Handle, Adjustment Screw, Adaptable Base Plate
Item Ship Weight
0.45
Item Weight
0.45
Nominal Clamping Force Range
25 - 250 lbs*
Order Minimum
1
Spec 7
450
Type
Inline
UNSPSC
27112132
Manufactured By
Bessey Tools


Other Details:
  • A removable non-marring plastic cap is included on the steel pressure pads.
  • Adjustable Clamping Force - the integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 250 lbs. (max holding capacity 450 lbs.)
  • Inline with flanged base
  • No more time-consuming manual adjustment of the spindle height to maintain safe and correct clamping force
  • One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps
  • The BESSEY Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force
