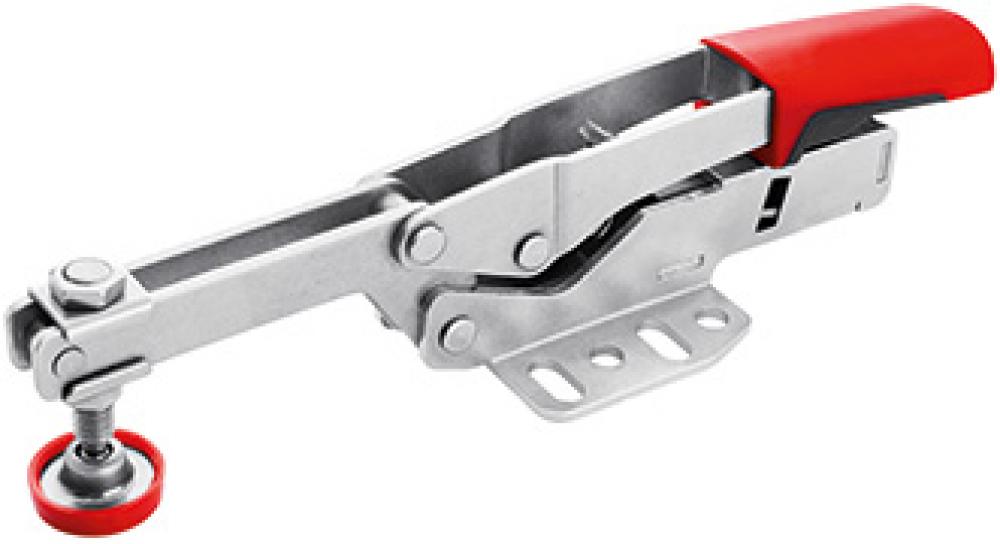

Horizontal Toggle With Open Arm And Horizontal Base Plate (STC-HH50)
by Bessey Tools
Auto-Adjusts to variations in work piece height from 20-60 mm (approx 2 3/8 IN) Holding capacity up to 700 lbs (nominal) Integrated pressure screw allows clamping force adjustment from 25-550 lbs Large ergonomic handle High quality construction Base construction is optimized for 1/4 IN (M6) fasteners Spindle has an M8 thread
Product Specification
Item #
STC-HH50
Dimensions
Height: 1.80"
Width: 2.24"
Additional product details
Vendor Item #
STC-HH50
Industrial Category
Hand Tools
Industrial Subcategory
Clamps
Industrial Subtype
Horizontal Handle Toggle Clamps
Approx. Weight
0.81 lbs
Automatic Adjust
1 3/8"
Case Quantity
5
Clamping Capacity
1 9/16"
Country Of Origin
Germany
Fastener
1/4" or M6
Holding Capacity
700 lbs
Includes
Large Ergonomic Handle, Adjustment Screw, Adaptable Base Plate
Item Ship Weight
0.86
Item Weight
0.86
Nominal Clamping Force Range
25 - 550 lbs*
Order Minimum
1
Ship Carton Height
9.125
Ship Carton Length
1.8
Ship Carton Width
2.244
Spec 7
700
Type
Horizontal
UNSPSC
27112132
Manufactured By
Bessey Tools
Other Details:
- A removable non-marring plastic cap is included on the steel pressure pads.
- Adjustable Clamping Force - the integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 550 lbs. (max holding capacity 700 lbs.)
- Extra large 1” x 2 1/8” cushion grip handle offers greater user comfort and ease of operation.
- Horizontal with flanged base
- No more time-consuming manual adjustment of the spindle height to maintain safe and correct clamping force
- One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps
- The BESSEY Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force
- The large (2 1/4” by 2 1/2”) flanged base is designed for use with 1/4” or M6 fasteners
Approx. Weight
