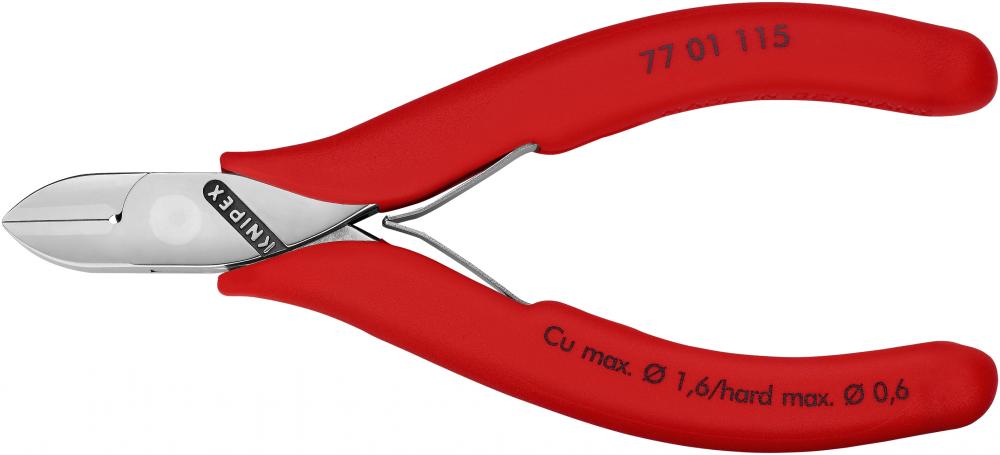

4 1/2" Electronics Diagonal Cutters (77 01 115)
by Knipex Tools
Product Specification
Item #
77 01 115
Dimensions
Height: 0.55"
Width: 1.94"
Additional product details
Vendor Item #
77 01 115
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Blade Length
35/64"
Brand Name
KNIPEX
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
1/64"
Cutting Capacity - Medium Hard Wire (Nail)
3/64"
Cutting Capacity - Soft Wire
1/64" to 1/16"
Cutting Capacity Hard Wire Steel Wire
1/64"
Cutting Capacity Medium Hard Wire Nail
3/64"
Cutting Capacity Soft Wire
1/64" to 1 /16"
Cutting Edge HRC
Approx. 62 HRC
Cutting Edge Shape
Small bevel
Cutting Result
Semi-flush
Data Sheet Filename
7701115_en.pdf
DIN
DIN ISO 9654
ECCN
EAR99
Handle Length
3 1/2"
Handle Type
Plastic coating
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Surface Finish: Polished
Item Height (inches)
9/16"
Item Height inches
9/16"
Item Length (inches)
4.5
Item Length inches
4 1/2"
Item Quantity
1
Item Weight (lbs)
0.145
Item Weight lbs
0.145
Item Width (inches)
1 15/16"
Item Width inches
1 15/16"
Jaw Length
35/64"
Jaw Thickness
19/64"
Jaw Width
7/16"
Joint Type
Box-joint with rivet
Joint Type 2
Fixed Joint
Material Type
Ball Bearing Steel
Package Height (inches)
1.2"
Package Height inches
1.2"
Package Length (inches)
5.0"
Package Length inches
5.0"
Package Weight (lbs)
0.176
Package Weight lbs
0.176
Package Width (inches)
2.4"
Package Width inches
2.4"
Packaging Height mm
33 mm
Packaging Length mm
152 mm
Packaging Width mm
81 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Polished
Tip Thickness
19/64"
Tool Attributes
Ball bearing chrome steel
, Cutters additionally laser hardened, cutter hardness at least 60 HRC
, Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire
, Cutting edge hardness approx. 62 HRC
, Cutting edges induction hardened for longer life and for more durable cutting
, For fine cutting work in electronics and fine mechanics
, Load-optimised for a more direct feel when working
, Low friction double spring for gentle and even opening
, Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
, Plastic-coated handles
, Round head
, Semi-flush cut
, Small bevel
, Sturdy, zero-backlash box joint
, The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Tool Height mm
13 mm
Tool Length mm
115 mm
Tool Weight grams
67 g
Tool Width mm
56 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221013448
Manufactured By
Knipex Tools
Other Details:
- Ball bearing chrome steel
- Ball bearing steel; laser-hardened cutting edges
- Cutters additionally laser hardened, cutter hardness at least 60 HRC
- Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire
- Cutting edge hardness approx. 62 HRC
- Cutting edges induction hardened (approx. 62 HRC)
- For fine cutting work in electronics and fine mechanics
- Load-optimised for a more direct feel when working
- Low friction double spring for gentle and even opening
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
- Plastic-coated handles
- Semi-flush cut
- Semi-flush with small bevel
- Sturdy, zero-backlash box joint
- The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
