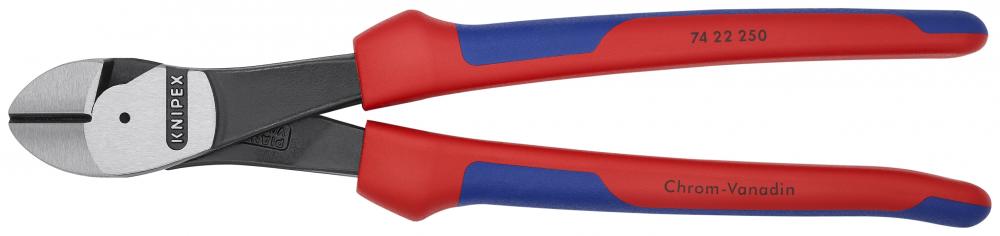

10" High Leverage 12°Angled Diagonal Cutters (74 22 250)
by Knipex Tools
Product Specification
Item #
74 22 250
Dimensions
Height: 1.20"
Width: 2.20"
Additional product details
Vendor Item #
74 22 250
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Angled Head
12 degree
Brand Name
KNIPEX
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
9/64"
Cutting Capacity - Medium Hard Wire (Nail)
3/16"
Cutting Capacity - Piano Wire
1/8"
Cutting Capacity Hard Wire Steel Wire
9/64"
Cutting Capacity Medium Hard Wire Nail
3/16"
Cutting Capacity Piano Wire
1/8"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Bevel
Data Sheet Filename
7422250_en.pdf
DIN
DIN ISO 5749
ECCN
EAR99
Handle Length
7 3/4"
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Surface Finish: Polished
Item Height (inches)
1 3/16"
Item Height inches
1 3/16"
Item Length (inches)
10
Item Length inches
10"
Item Quantity
1
Item Weight (lbs)
1
Item Weight lbs
1
Item Width (inches)
2 3/16"
Item Width inches
2 3/16"
Joint Type
Forged-in axle
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium heavy-duty steel, forged, oil-hardened
Nomintal Length mm
250
Other Surface Finish
Black atramentized
Package Height (inches)
1.0"
Package Height inches
1.0"
Package Length (inches)
10.8"
Package Length inches
10.8"
Package Weight (lbs)
1.056
Package Weight lbs
1.056
Package Width (inches)
2.8"
Package Width inches
2.8"
Packaging Height mm
51 mm
Packaging Length mm
324 mm
Packaging Width mm
124 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Surface Finish
Polished
Tool Attributes
10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm².
, 20% less effort required compared to conventional diagonal cutters of the same length.
, Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.
, For very tough, continuous use.
, Forged-on axle for heavy-duty work.
, High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio.
, Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire.
Tool Height mm
50 mm
Tool Length mm
250 mm
Tool Weight grams
437 g
Tool Width mm
51 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221005184
Manufactured By
Knipex Tools
Other Details:
- 10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
- 12˚ angle head for hand clearance when cutting
- 20% less effort required compared to conventional diagonal cutters of the same length
- Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
- For very tough, continuous use
- Forged-on axle for heavy-duty work
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
