REED SD-4023 SD Series Sound Level Meter, Datalogger, 30 to 130dB, includes NIST Traceable Cert
Image may not reflect selected features

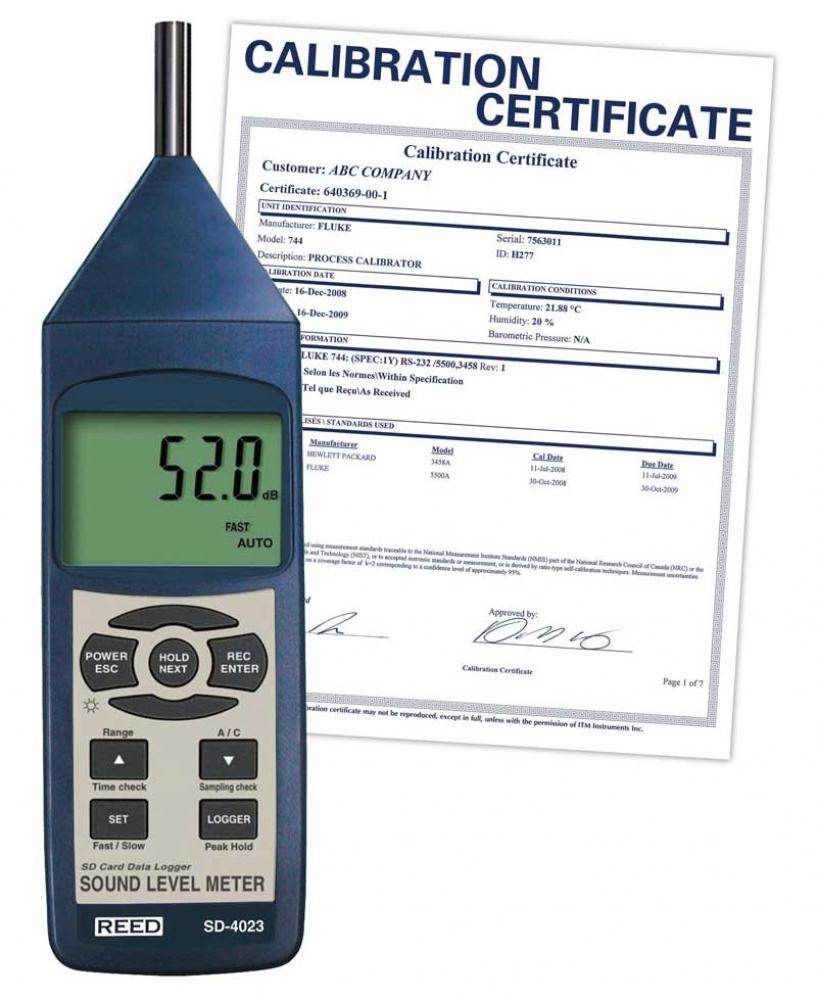

REED SD-4023 SD Series Sound Level Meter, Datalogger, 30 to 130dB, includes NIST Traceable Cert (SD-4023-NIST) by ITM - Reed Instruments
Triple range Type 2 sound level meter with data logging capabilites to record on an external SD card and export directly to Excel without software. This product includes NIST Traceable Certificate with full Data and Uncertainties.
Downloads
Product Specification
Item #
SD-4023-NIST
Dimensions
Additional product details
Vendor Item #
SD-4023-NIST
Industrial Category
Test Instruments
Industrial Subcategory
Nonelectrical Properties Testing
Industrial Subtype
Sound Level Meters
Bullet 1
High accuracy of ±1.4 dB meets Type 2 standards
Bullet 10
Tripod mount for long-term monitoring
Bullet 11
Low battery indicator and auto shut off
Bullet 2
Triple range measurement (50dB dynamic range)
Bullet 3
A & C frequency weighting
Bullet 4
Fast & Slow time weighting
Bullet 5
Real time data logger with integral SD memory card
Bullet 6
User selectable sampling rate from 1 to 3600 seconds
Bullet 7
Large, easy-to-read backlit LCD display
Bullet 8
Peak hold, Data hold and Min/Max hold
Bullet 9
Optional PC software features live tracking via USB connection
Includes
Batteries, NIST Traceable Certification
Item Height (inches)
1.8
Item Length (inches)
9.7
Item Quantity
1
Item Weight (lbs)
1.08125
Item Width (inches)
2.7
Package Height (inches)
2.3
Package Length (inches)
10.2
Package Weight (lbs)
1.5
Package Width (inches)
3.2
PDF 1
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r8500-3-9mm/datasheet/r8500-3-9mm-datasheet.pdf
PDF 2
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r8500-3-9mm/manual/r8500-3-9mm-manual.pdf
Manufactured By
ITM - Reed Instruments
