Coxreels Spring Driven Cord Reel 12GAx50ft no cord no accessory

No Image
Available

Image may not reflect selected features

/vendors/8252/large/PC13-Less-Cable-Series-01.jpg

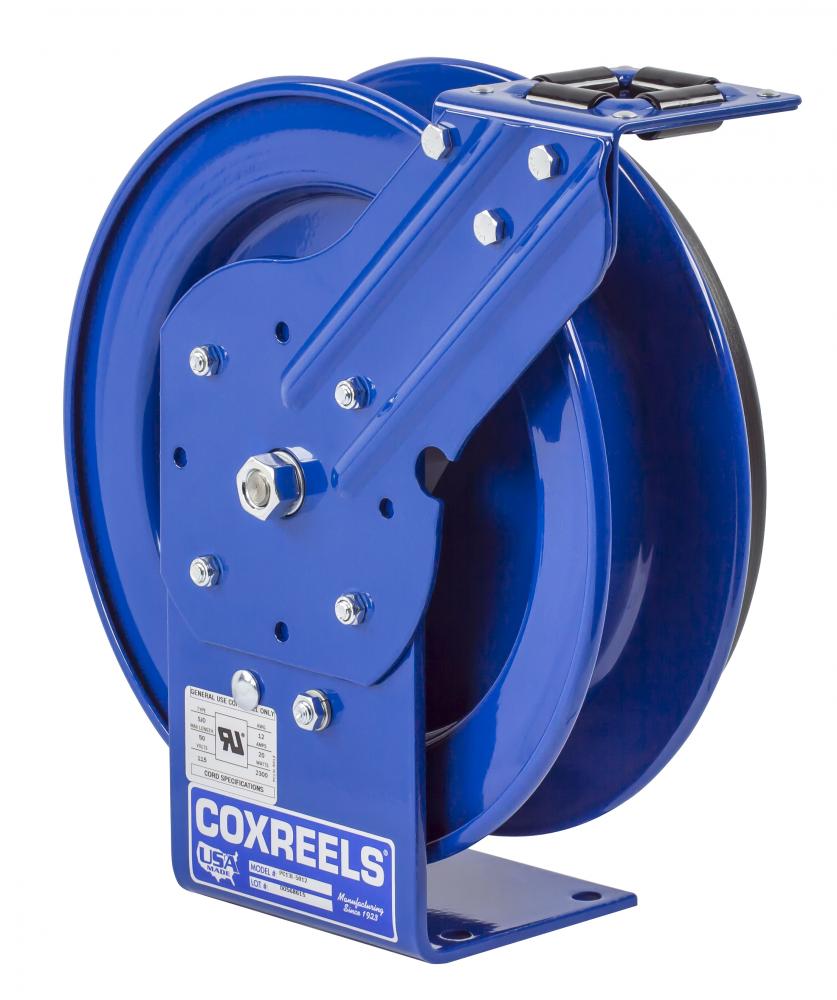

Spring Driven Cord Reel 12GAx50ft no cord no accessory (PC13L-5012) by Coxreels

Coxreels PC13L-5012 Power Cord Spring Rewind Reels: 12AWG, 50' Less Cord & Accessory

Downloads

Product Specification

Item #

PC13L-5012

Dimensions

Height: 14.88"

Width: 8.50"

Additional product details

Vendor Item #

PC13L-5012

Industrial Category

Pneumatics

Industrial Subcategory

Hose Reels

Industrial Subtype

Spring Return Hose Reels

Country of Origin

USA

Currency Code

Dollars

Item Length (inches)

13.50

Item Quantity

Item Weight (lbs)

Ordering Quantity

Product Series

PC Series

Spec 07

AWG / No. Cond: 12/3

Spec 08

Length: 50'

Spec 09

Amps: 25

Spec 10

Volts: 115

Spec 11

Cord Type: SJO

UPC Number

0674255921122

Manufactured By

Coxreels

Other Details:

1" solid steel axle & lubricated precision bearings for smooth rotation
1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
COMPONENT COVER - External, easily accesible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
Durable proprietary CPC™ powder coat process
Electrical current runs through a 25AMP / 600V rated slip ring
Enclosed factory tuned & matched cartridge-style spring motor
External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
Guide arm adjusts to wall, floor & overhead positions
Leading 2-year manufacturer's limited warranty
Made in the U.S.A. - Sold & Supported Worldwide
MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
Multi-position lock ratchet mechanism secures cord at desired length
Non-corrosive stainless steel spring, pawl & zinc plated ratchet
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings
Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Single pedestal cord reel with space saving designfacilitates workplace organization
Solid one piece, heavy gauge 1⁄4" steel base & support post for maximum stability
