Coxreels Dual Purpose Spring Rewind Reels 3/8inx50ft 300PSI; Less accessory 50ft cord 12 AWG

No Image
Available

Image may not reflect selected features

Dual Purpose Spring Rewind Reels 3/8inx50ft 300PSI; Less accessory 50ft cord 12 AWG (C-L350-5012-X) by Coxreels

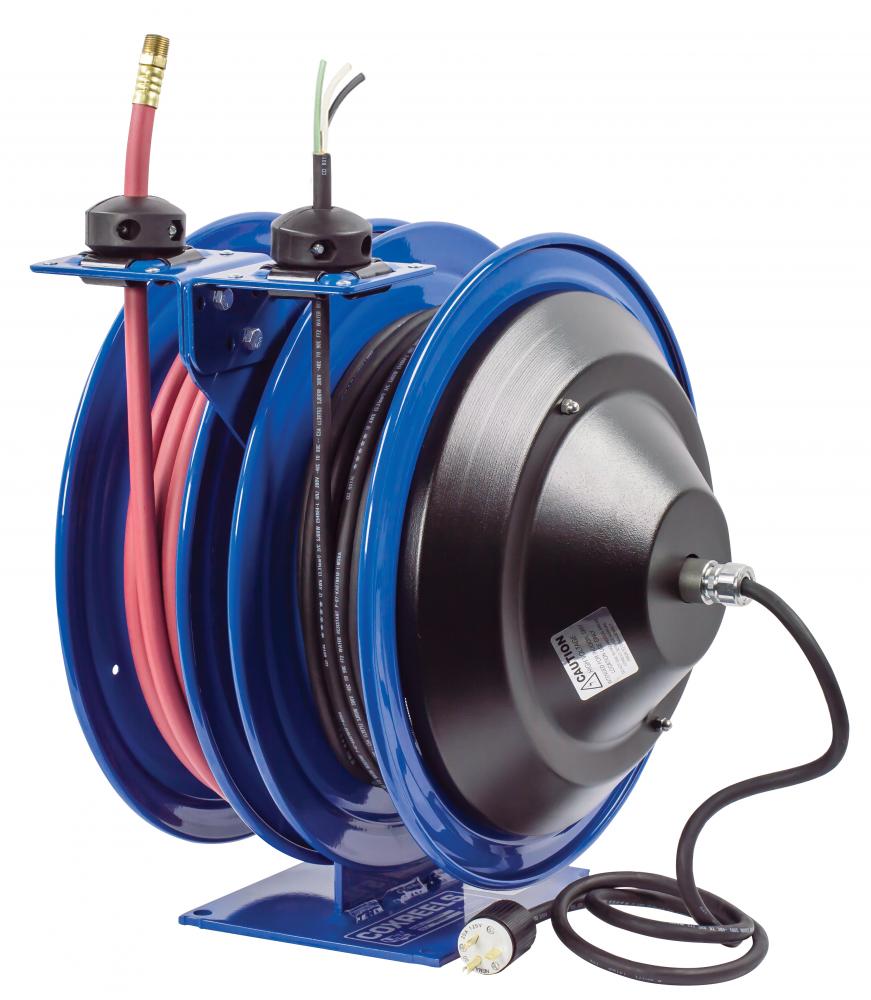

Coxreels C-L350-5012-X Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Less accessory, 50' cord, 12 AWG

Downloads

Product Specification

Item #

C-L350-5012-X

Dimensions

Height: 18.63"

Width: 16.00"

Additional product details

Vendor Item #

C-L350-5012-X

Industrial Category

Pneumatics

Industrial Subcategory

Hose Reels

Industrial Subtype

Air Hose/Electrical Cord Combination Reels

Country of Origin

USA

Currency Code

Dollars

Item Length (inches)

17.00

Item Quantity

Item Weight (lbs)

Ordering Quantity

Product Series

C Series

Spec 01

ID: 3/8"

Spec 02

OD: 5/8"

Spec 03

Length: 50'

Spec 04

Reel Inlet: 3/8" (F)NPT

Spec 05

Hose Material: PVC

Spec 06

PSI: 300

Spec 07

AWG / No. Cond: 12/3

Spec 08

Length: 50'

Spec 09

Amps: 20

Spec 10

Volts: 115

Spec 11

Cord Type: SJO

UPC Number

0674255726406

Manufactured By

Coxreels

Other Details:

1/4" STEEL BASE - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for air/ electric applications, each reel operates independently.
1” solid steel axle & lubricated precision bearings for smooth rotation
5" Lead cable & grounding plug
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
Compact two reel assembly for dual hose applications, each reel operates independently
Durable proprietary CPC™ powder coat process
Enclosed factory tuned & matched cartridge-style spring motor
External CPC poder coated steel components cover for simple slip ring routine maintenance
External fluid paths with machined from solid brass 90° full-flow NPT swivel inlets
Guide arm adjusts to wall, floor & overhead positions
Leading 2-year manufacturer's limited warranty
Made in the U.S.A. - Sold & Supported Worldwide
MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
Multi-position lock ratchet mechanism secures hose at desired length
No accessory
Non-corrosive stainless steel spring, pawl & zinc plated ratchet
One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, 5' lead cable and grounding plug, and sturdy permanently lubricated precision bearings.
Professional grade heavy duty steel construction
PVC red hose
Rolled edges & ribbed discs provide strength & safety
Single expanded, 1/4” steel mounting base for increased stability & space efficiency
SWIVEL & LEAD CABLE - Machined from solid brass 90˚ full-flow NPT swivel for simple seal maintenance and easy hose installation.Easily accessible, heavy gauge CPC powder coated steel components cover for fast and simple slip ring routine maintenance.
Swivel Seals: NITRILE
