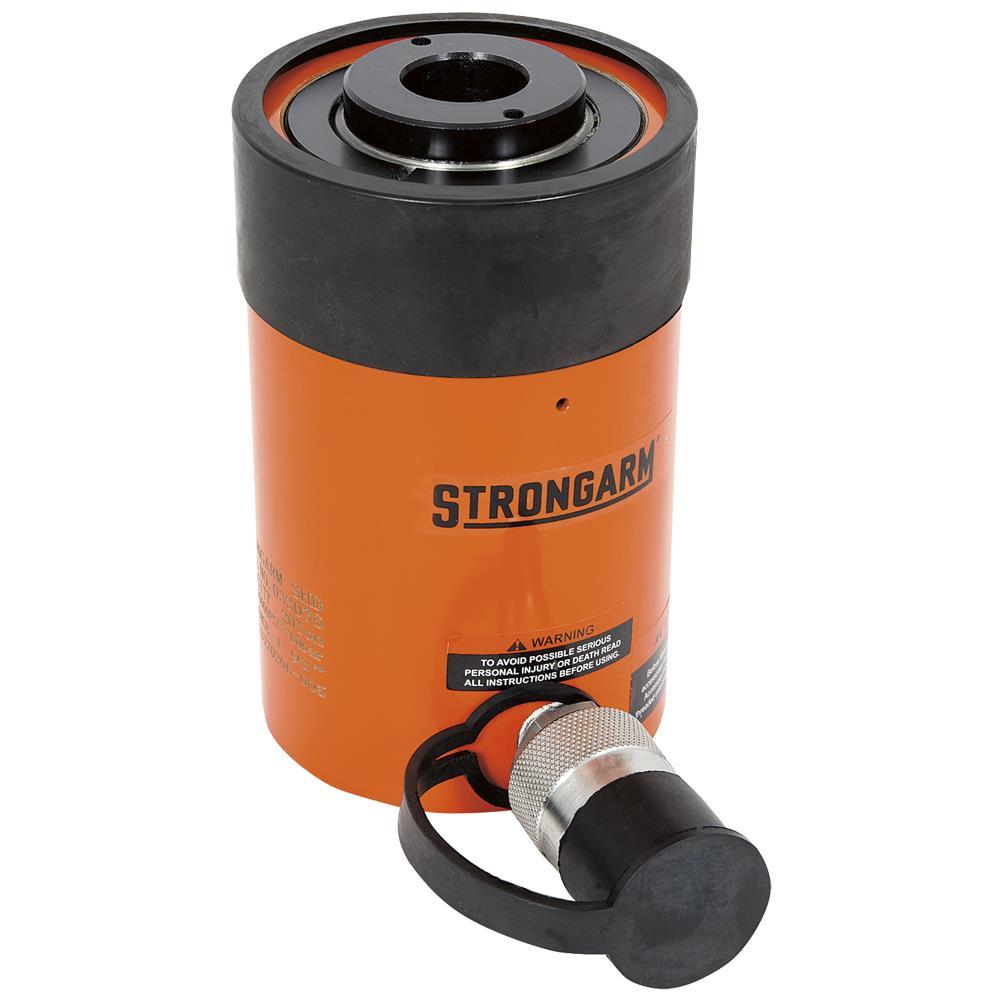

Hollow Centre Single Acting Cylinders (033076)
by Strongarm
Downloads
Product Specification
Item #
033076
Dimensions
Height: 4.80"
Width: 7.40"
Additional product details
Vendor Item #
033076
Industrial Category
Hydraulics
Industrial Subcategory
Hydraulic System Components
Industrial Subtype
High Pressure Hydraulic Cylinders
Base Fixturing Holes - Bolt Circle (U)
3.25"
Base Fixturing Holes - Thread (V)
3/8"-16UNC
Base Fixturing Holes - Thread Depth (Z)
0.37"
Brand
JET
Capacity @ 700 Bar (10,000 PSI)
20
Centre Hole Diameter (Y)
1.06"
Collapsed Height (A)
6.38"
Collar Thread (C)
3-7/8" - 12
Collar Thread Length (X)
1.50"
Country of Origin
CN
Duty Level
Super Heavy Duty
Each Qty.
1
Effective Area
5.08 in²
Extended Height (B)
8.31"
Harmonized Tariff Code
8412.21.00.90
HTS (Harmonized Tariff Schedule) Code
7326.90.90.90
Inner Pack Qty.
0
Item Height (inches)
4.80
Item Length (inches)
8.85
Item Quantity
1
Item Weight (lbs)
17.0000
Item Width (inches)
7.40
Master Pack Code
10059629998271
Model Number
SACH202
Oil Capacity
9.8 in³
Ordering Quantity
1
Outside Diameter (D)
3.90"
Package Quantity
1
Package UPC
10059629869342
Piston Rod Diameter (F)
2.17"
Quantity
1
Rated Capacity
20 T
Spring Return
Yes
Stroke Length
1.93"
UPC
059629869345
UPC Code
059629998274
UPC Number
059629998274
Manufactured By
Strongarm
Other Details:
- Collar and plunger threads for fixture attachment
- Complies with ASME B-30.1
- High strength alloy steel for durability and added safety
- Hollow plunger design allows for both push and pull forces
- Single acting spring return
