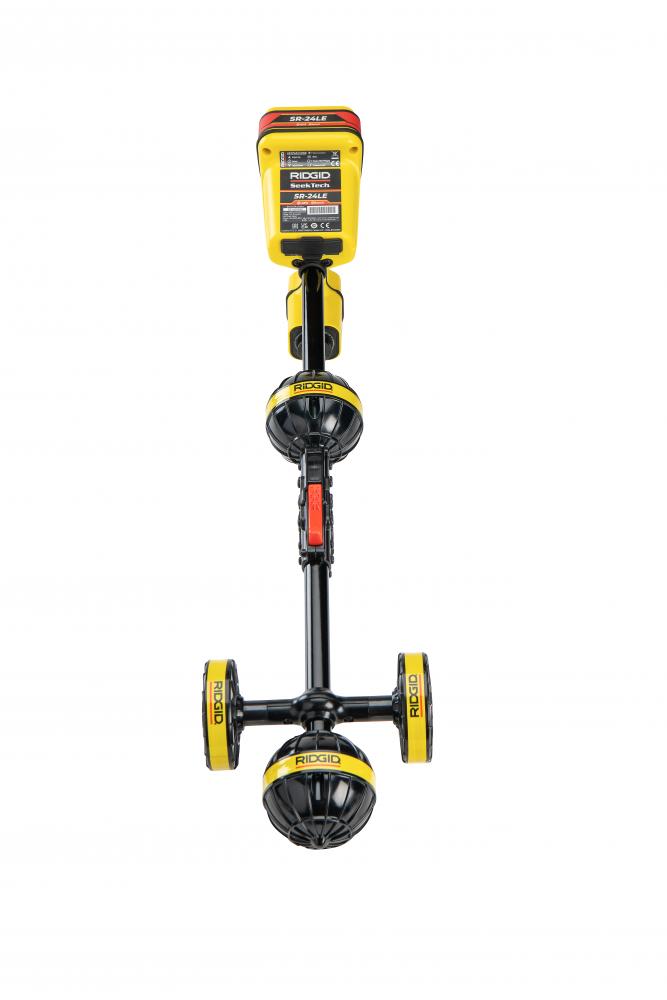

SeekTech® SR-24LE Line Locator with Bluetooth® and GPS (76813)
by RIDGID Tool Company
The RIDGID SR-24LE is a precision utility locating instrument with GPS and Bluetooth® Low Energy technology for easy integration with external data capture devices. The SR-24LE’s intuitive mapping display shows the utility's estimated position, direction and depth, while audio cues guide the operator over the utility.
Product Specification
Item #
76813
Dimensions
Additional product details
Vendor Item #
76813
Industrial Category
Test Instruments
Industrial Subcategory
Electrical Power Testing
Industrial Subtype
Underground Utility Locators
Accessory SKUs
21898 / 50793R / 56513 / 56518 / 64383
Allow Standard Pack to be Broken
False
ANSI
none
ASME
none
ASSE
none
ASTM
none
AWWA
none
Battery Advertised Voltage
n/a
Battery Composition
n/a
Battery Included
No
Battery Life
n/a
Battery Packaging
n/a
Battery Required
Yes
Battery Type
18V Advanced Lithiu, Battery
BlueTooth
Yes
Brand
RIDGID
CA Prop 65 Cancer
No
CA Prop 65 Chemcial Names
n/a
CA Prop 65 Reproductive Harm
No
CA SCAQMD
No
Color
Yellow
Compatible Devices List
RidgidTrax App,SeekTech ST-305 Transmitter, RIDGID 18V Batteries, Case
Country of Origin
US
Default Active Line Trace Frequencies
128Hz, 1kHz, 8kHz, 33kHz
GHS
No
GPS Average Accuracy
Less than 8.2 ft (2.5 m)
Handle Type
Normal
Hazardous Material
False
Height
31 IN / 787.4 MM
HTS Code
9031808080
ISO
none
Length
11.2 IN / 284.48 MM
Light
n/a
Material
Plastic
Max Operating Temperature
122 F / 50 C
Min Operating Temperature
-4 F / -20 C
Model Number
SR-24LE
Motor Amperage
n/a
Motor Horsepower
n/a
Motor RPM
n/a
Motor Type
None
Motor Wattage
n/a
NSF
none
Number of Handles
1
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Packaging Type
Box
Passive Frequency Ranges
<4kHz, 4kHz - 15kHz, 15kHz - 30kHz
Passive Power Frequencies
50Hz, 60Hz
Power
Battery Powered
Product Line
SeekTech®
Programmable Line & Sonde Frequencies
Any from 10Hz to 35kHz
Programmable Line Trace Frequencies
Up to 35kHz
REACH Compliant
Yes
RoHS Regulations
No
SDS Required
No
Shape
Rectangle
Similar SKUs
76898
Sonde Frequencies
16Hz, 512Hz, 33kHz
Storage Tempearature
-4°F to 140°F (-20°C to 60°C)
UNSPSC Code
41114404
UPC Code
095691768131
Weight
5.3 LB / 2.40363 KG
Weight (without batteries)
3.3 lb (1.5 kg)
WHMIS Classification
n/a
Width
4.3 IN / 109.22 MM
WiFi
No
Wireless Range
1093 yds (1000 m)
Wireless Technology
Bluetooth® Class 1 Low Energy
Manufactured By
RIDGID Tool Company
Other Details:
- Bluetooth® Compatiability: Bluetooth® Low Energy technology streams data to smartphones, tablets or high-precision GPS instruments.
- Built-In GPS: Track location coordinates for mapping and GIS applications.
- Dilineation: Intuitive mapping display shows concealed utitilies estimated position, direction, and depth.
- Increased confidence - Audio and visual warnings alert signal field distortion.
- Integrated Battery Adaptor: Equipped with a SeekTech Battery Adaptor for your RIDGID 18V Li-Ion battery (battery purchased separately).
- Omnidirectional Attenas: Capture the complete signal for greater speed and accuracy.
- Wireless Streaming - Transmit real-time line location coordinates using RIDGIDtrax App.
