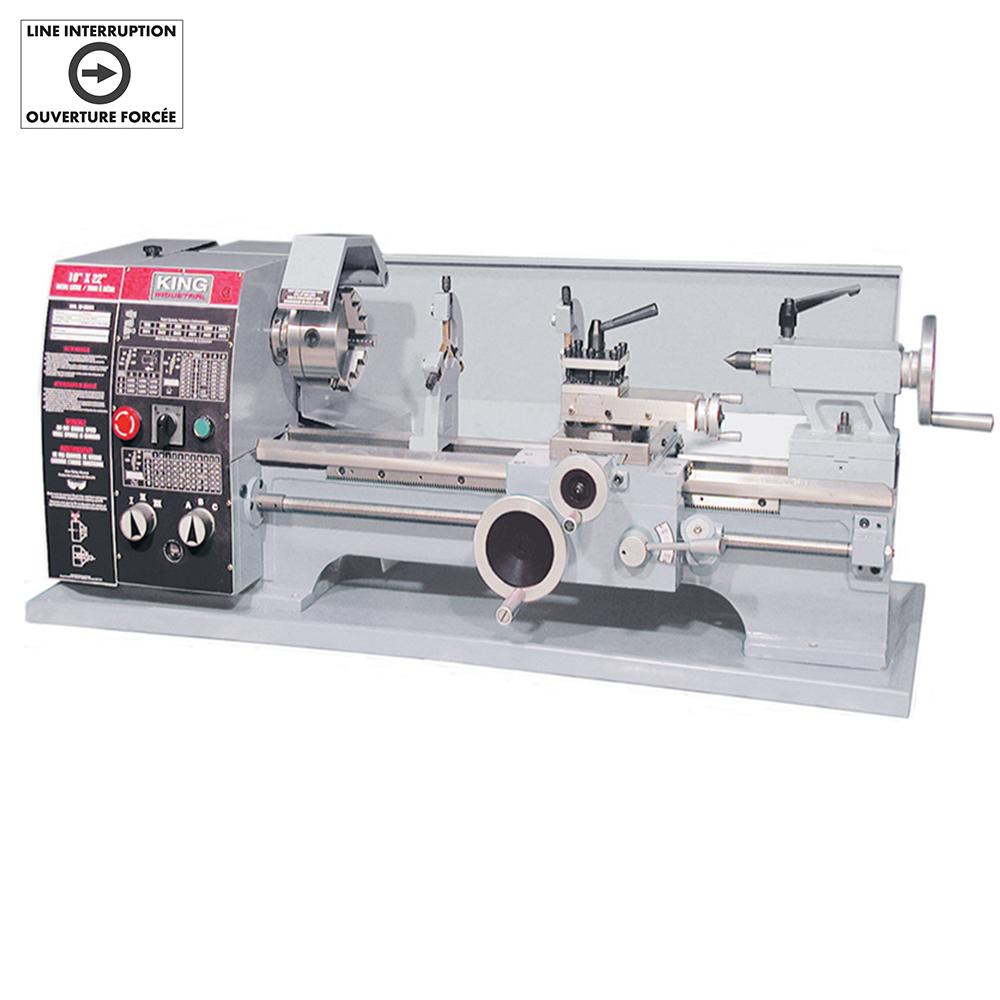

10" x 22" Metal lathe (KC-1022ML)
by King Canada
10" x 22" Metal lathe
Product Specification
Item #
KC-1022ML
Dimensions
Height: 19.00"
Width: 23.00"
Additional product details
Vendor Item #
KC-1022ML
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight
50'' x 23'' x 19'' / 360 lbs
Distance between centers
22''
Item Length (inches)
50
Item Quantity
1
Item Weight (lbs)
360 lbs
Moteur
12 Amp.
Package dimensions (LxWxH) / Weight
49'' x 26-3/8'' x 21-3/8'' / 440 lbs
Product Series
KING INDUSTRIAL
Spec 01
Distance between centers: 22"
Spec 02
Swing over bed: 10"
Spec 03
Spindle bore: 1"
Spec 04
Swing over cross slide: 6"
Spec 05
Taper in headstock: MT #4
Spec 06
Taper in tailstock: MT #3
Spec 07
Width of bedways: 6"
Spec 08
Total travel of cross slide: 6-3/8"
Spec 09
Total travel of top slide: 4-1/4"
Spec 10
Spindle speeds: 6 (150-2,400) RPM
Spec 11
Thread cutting: 24 (8-72 TPI) 18 (.25-3mm)
Spec 12
Motor: 12 Amp.
Spec 13
Voltage: 110V, 1 phase, 60 Hz
Spec 14
Assembled dimensions (LxWxH) / Weight: 50" x 23" x 19" / 360 lbs
Spec 15
Packaging dimensions (LxWxH) / Weight: 49" x 26-3/8" x 21-3/8" / 440 lbs
Spindle
1''
Spindle speed
6 (150-2,400) RPM
Swing over base
10''
Swing over bed and carriage
6''
Tank size
MT #4
Taper in spindle bore
MT #3
Thickness
24 (8-72 TPI) 18 (.25-3mm)
Total surface of work table
6-3/8''
Total travel of cross slide
4-1/4''
UNSPSC Number
23242300
UPC Number
7 72995 00276 4
Variable speeds (wood)
110V, 1 phase, 60 Hz
Width of bed
6''
Manufactured By
King Canada
Other Details:
- Comes with 5"-3 jaw chuck, 6-1/2"-4 jaw chuck, imperial and metric gears, 4 ways tool post, steady rest, follow rest, 8" face plate, thread chasing dial indicator, MT#3 dead center, full length splash guard, tool box, chuck key and hex.l keys
- Guideway and gears in headstock are all hardened and precision ground
- Line interruption switch system needs a restart after a power failure
- Powerful 1 HP Motor
- Safety guard with limit switch protection
