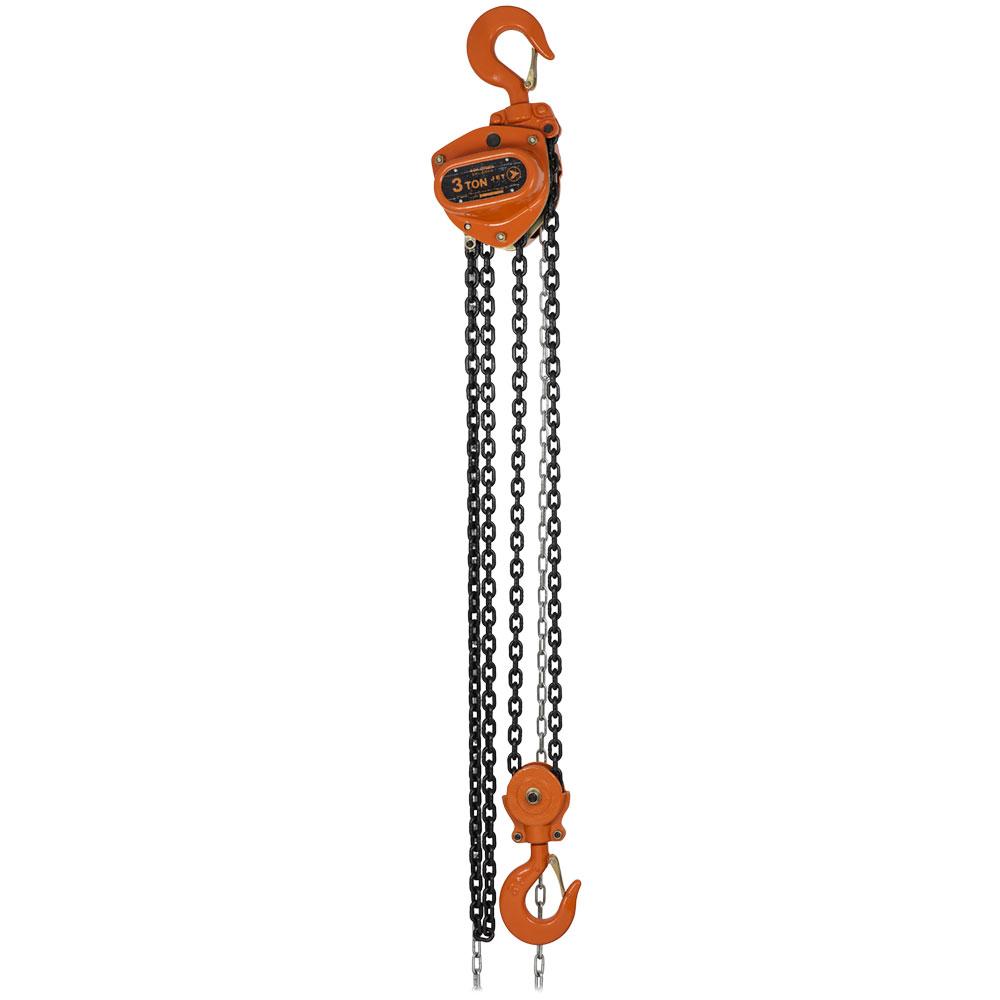

KCH Series Chain Hoists (101142)
by Jet - CA
The JET KCH series chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Downloads
Product Specification
Item #
101142
Dimensions
Height: 11.61"
Width: 8.27"
Additional product details
Vendor Item #
101142
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists
, Manual Chain Hoists
Brand
JET
Capacity (lb.)
6,600 lb
Capacity (T)
3 T
Capacity lb
6,600 lb
Capacity T
3 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Duty Level
Heavy Duty
Each Depth (in.)
11.61
Each Length (in.)
13.78
Each Qty.
1
Each Weight (lb)
52.6899
Each Width (in.)
8.27
Force Required to Lift
79 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
20"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
13.78
Item Length inches
13.78
Item Quantity
1
Item Weight (lbs)
52.6899
Item Weight lbs
52.69
Length of Hand Chain Pulled to Lift Load to 1
114'
Length of Hand Chain Pulled to Lift Load to 1'
114'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
7.1 mm
Load Chain Grade
100
Master Pack Qty.
1
Master Pack Weight (lb)
0.0000
Min. Distance Between Hooks
20"
Model Number
KCH-3010
Number of Falls
2
Number of Safety Hooks
2
Package Quantity
1
Package UPC
10059629886066
Package Weight lbs
0
Quantity
1
Special Features
Non-asbestos brake discs
UOM
EA
UPC
059629886069
UPC Code
059629869376
Manufactured By
Jet - CA
Other Details:
- Dual pawl Weston style brake with heavy-duty springs provides safe and reliable operation
- Load tested to 150% of rated capacity and includes certificate
- Made with premium grade non-asbestos brake discs for long service life
- Maintenance free sealed bearings provide easy operation
- Professional grade triple spur gear is lightweight and portable
